Click maps for UserTesting

Learn about Click maps for the UserTesing.

This article applies to: ut logo tiny.pngUserTesting

Click maps are available on the following subscriptions:

Flex plan Seat-based plan
Essentials  Startup
Advanced Professional
Ultimate Premium
This feature is also available in the Starter edition (beta).



On this page:






About Click maps

  • Quickly identify which screen elements contributors interacted with the most.
  • Access a detailed list of all interactions contributors had with specific screen elements.
  • Click maps combine data from all contributors into a single, interactive representation.
  • Efficiently analyze interaction patterns from larger groups of contributors.





Accessing Click maps

Click maps will appear on the Metrics tab when:

  • You add blank tasks to tests on desktop sites, web-based prototypes, and mobile websites.
  • Contributors interact with a web page in a Chrome browser, including web-based prototypes.
  • If contributors interact with only one screen, a single-click map is displayed for the task.
  • If contributors interact with multiple screens, multiple click maps are displayed as part of the Interactive Path Flow.

Click maps will not appear if:

  • Contributors interact with a static image hosted on a Google Drive, OneDrive, or similar, including PDFs or images hosted by UserTesting (Image Assets).
  • The test is conducted on a mobile app.
  • The test is conducted using a browser other than Chrome or is conducted with the Invite Network.

💡Note: When using long-scrolling prototype pages and built-in tools such as Invision or Figma, the click positions may be inaccurate once the contributor scrolls the page.





Click map insights

Set up your test for Click map insights

  • Ensure your test includes a prototype or live website that contributors can interact with.
  • Click maps are generated based on interactions with clickable elements on these assets.
  • Create tasks that prompt contributors to click, navigate, or interact with specific elements of the screen.
    • Example: "Click on the menu to explore the options available."

Viewing Click map insights

  1. Navigate to the Metrics tab.
  2. Locate the task to view the Click map.
  3. Alternatively, they will also appear as part of an Interactive Path Flow if the contributor visits multiple screens during a task. Select a screen step to view the click map associated with it.
    interactive path click test.png

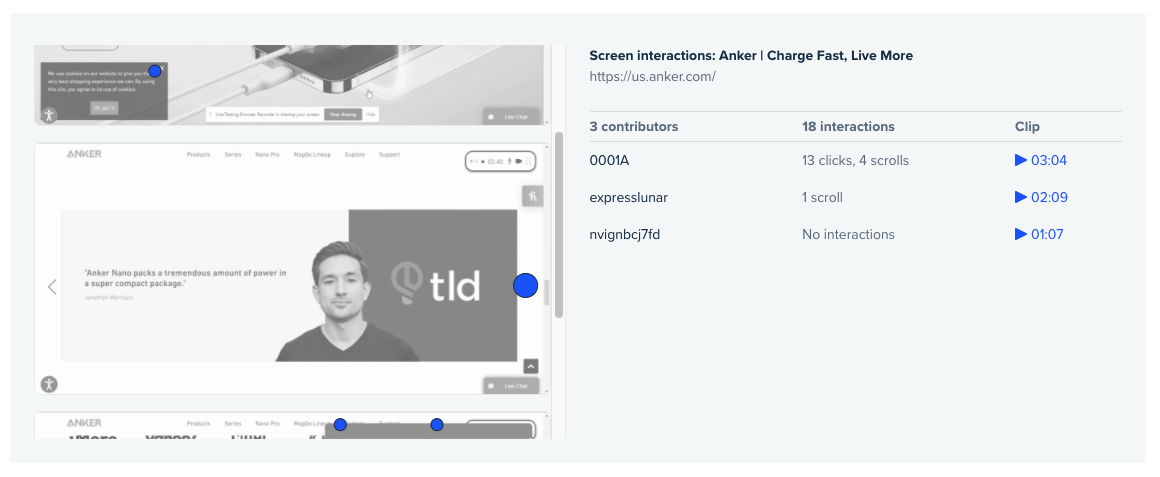

  • When you look at a click map, you see a picture of the screen contributors interacted with and an overlay with circles.
  • The circles show where contributors interacted with the screen.
  • A table listing all contributors’ interactions with the screen is displayed next to the click map.
  • Smaller circles represent fewer interactions, and larger circles represent more interactions.
  • When you hover over a circle, a popover appears, showing the contributors’ interactions.
  • The contributors’ usernames are highlighted in the table.

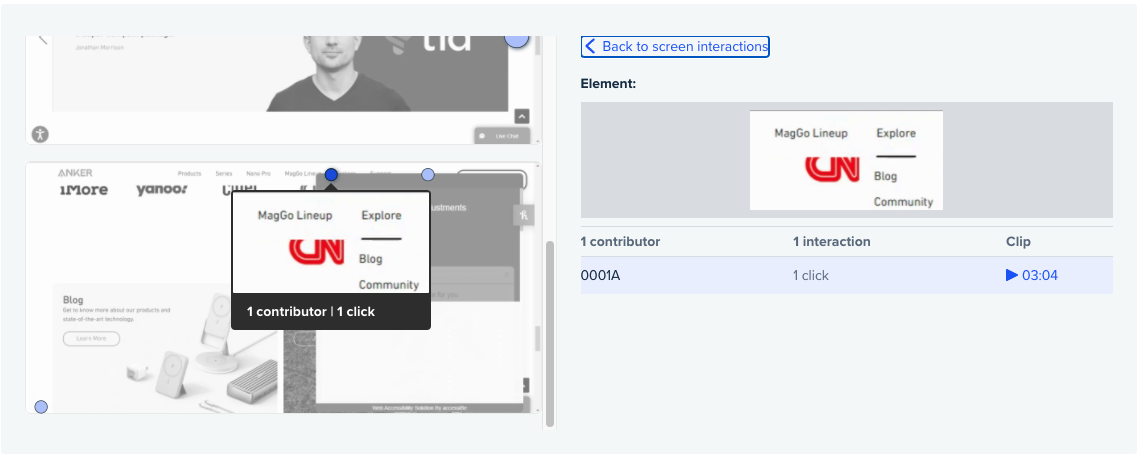

  • Select the circle to see a table of contributors’ interactions with the element.
  • Click the play button in each row to watch a video of that contributor’s interaction.

💡 Tip: When you watch the interaction video, you can add a note, make a clip, review the transcript, and see suggested tags, just like you can in the video player.

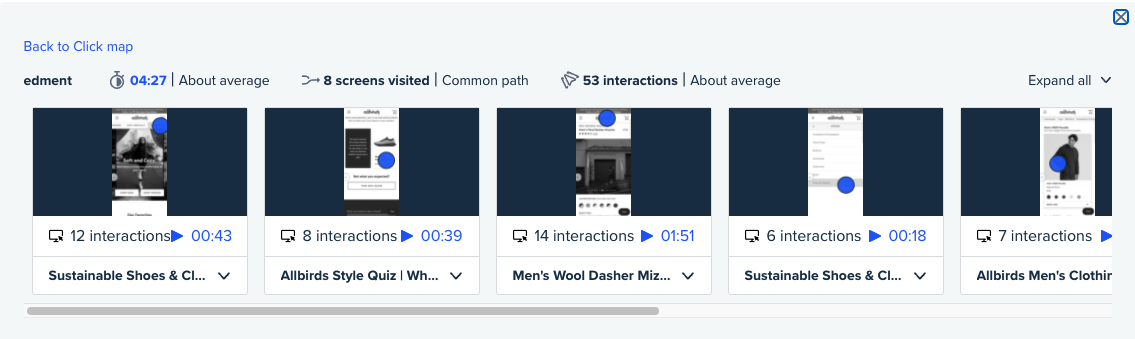

To see all interactions of a single contributor:

  • Select the username.
  • You only have the option to view all interactions of a single contributor if the click map is part of an Interactive Path Flow.





Summary of interactions: Mobile/tablet touchscreen

  • Click maps are available on both iOS and Android and are generated for mobile tests of websites.
  • Tests of mobile apps will not generate click maps.
  • Prototypes of mobile experiences will generate click maps if those prototypes are web-based.

The following mobile interactions are included in click maps:

  • Tap
  • Text input

The following mobile interactions are not included in click maps:

  • Scroll and pan
  • Pinch
  • Rotate
  • Long press
  • Drag
  • Swipe
  • Android’s back button
  • iOS flick-close





Summary of interactions: Desktop

  • Click maps are supported on Windows and Apple OS desktops, but only when the contributor uses a Chrome browser.
  • This includes prototypes that you point contributors to via the URL Asset.

The following desktop interactions are included in click maps:

  • Left or main click
  • Right or secondary click
  • Third button click
  • Text input

The following desktop interactions are not included in click maps:

  • Scroll and pan
  • Other Apple gestures





Sharing insights

There are a few ways in which you can share insights from click maps.

Option 1

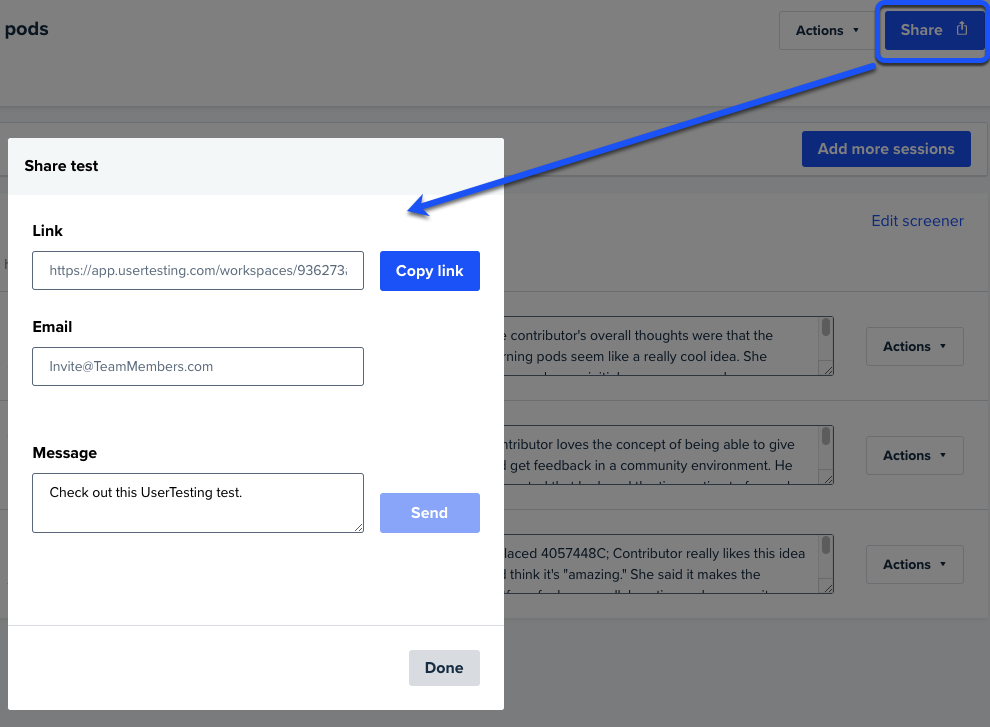

Select Share from the Results page of your test to generate a test link to share with anyone (if available on your account), or email the test to logged-in team members directly from the UserTesting platform.

💡Note: This method will share the entire test, not just click maps.

Option 2

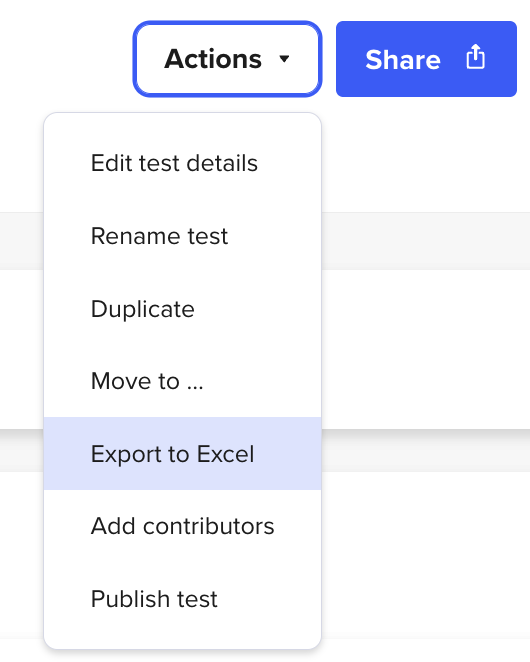

Export test results to an Excel file by selecting Export to Excel under Options.
Screenshot 2023-10-17 at 9.23.48 AM.png

Notes:

  • Click maps visualization will not show up in your export.
  • The export will show data for specific contributors, like time on task, clicks, pages, and unique pages.
  • This method will export all of the test results details, including Session details, Metrics, Notes, and Clips marked as "Important" and tagged with sentiment.Screen_Shot_2021-10-21_at_3.22.12_PM.png

Option 3

Take a screenshot of the Click map visualization and share it with your team as an image file.
